RME Fireface UCX - 36-Channel USB/FireWire Audio Interface

RME Audio Interface FIREFACE UCX 36-Channel USB 2.0 Audio Interface

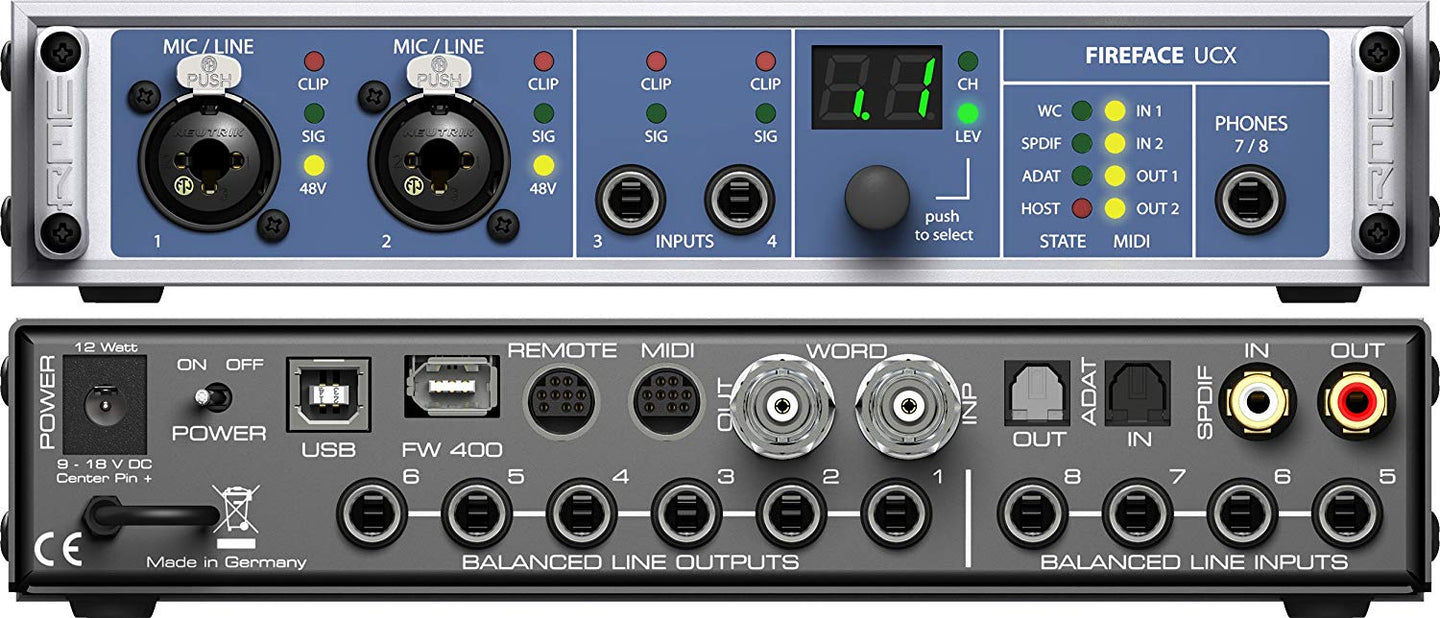

The Fireface UCX is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact high-end interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

High-End Converter with low latency Design
In doing this the Fireface UCX marks a new packing record: 300 electronic components more than inside the already well-stocked Fireface UC! In a tremendous effort RME packed once again all the latest technologies, introduced with the award winning flagship UFX, plus a bunch of newly developed ones, into a half 19 inch housing with full mobile usability.

The result is an awesome combination of RME's most successful products: Fireface UFX, Firefaces UC/400 and Babyface. The Fireface UCX is not just a smaller version of the smash hit UFX, with the HFX-core, the preamps and the complete effects engine. The UCX continues the tradition of RME's tremendously successful compact interfaces, and combines it with the Babyface's usability through the optional RME remotes.

Features:
- Low Latency mastering grade converters with outstanding specifications.
- Two mic preamps with the premium technology from RME's high-end recording bestsellers Micstasy and UFX, including the AutoSet overload protection.
- A newly developed Hammerfall audio core, supporting USB and FireWire with the maximum performance and ultra-low latency operation, combined with the legendary RME driver stability and maintenance, on both bus protocols.
- TotalMix FX with the complete Fireface UFX DSP engine, including all effects up to 192 kHz.
- Monitoring Controller: combining the impressive flexibility of the TotalMix FX monitoring tool set and the optional RME Remote Control.
- RME's unique DIGICheck metering and analysis toolbox for Windows PC and Mac. Plus support for RME's Advanced Remote Control, active jitter suppression technology, professional reference level support, advanced stand-alone functionality, full 192 kHz operation, and last but not least two high speed MIDI I/Os.
- On top of it: The Fireface UCX is the first professional audio interface with Class Compliant mode to work with Apple's iPad, for perfect stereo up to 18 channel recording and playback, and the addition of truly professional I/Os.

Quality over quantity

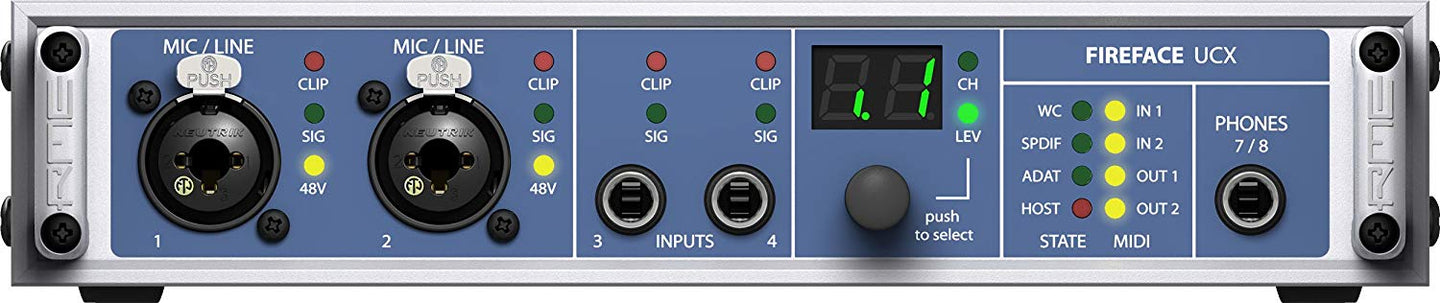

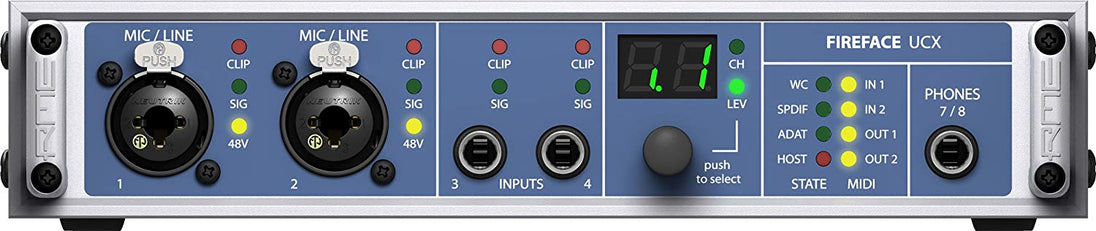

The UCX provides two high-end mic and instrument preamps - built right into the front.

Like the famous UFX ones, both preamps use core technology of RME's Micstasy. A high-end preamp for supreme sonic demands and critical applications, like professional recordings of classical and acoustic music. The outstanding preamp design boasts extremely low distortion, excellent signal to noise ratio and a perfectly flat frequency response. A premium solution for transmitting and amplifying any audio source truly unchanged, be it high-level stage or typical studio signals, lower level and high-impedance instruments, or dynamic, condenser and ribbon microphones.

The digitally controlled gain of up to 65 dB, adjustable in steps of 1 dB over a range of 55 dB, is individually set for each preamp with the encoder knob on the front or in TotalMix FX on the host computer. All level settings are 100% reproducible and can also be adjusted using a MIDI remote controller.
