RME Digiface USB 24 Bit / 192 kHz, 66-channel Hi-Performance USB 2.0 Audio Interface, 4x ADAT I/O

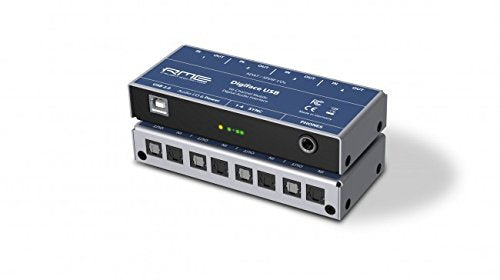

The Digiface USB from RME is a portable USB 2.0 audio interface designed to quickly and efficiently transfer 24-bit / 192 kHz digital audio data in ADAT and S/PDIF format to Windows and Mac computers. Lightweight (at 0.49 lb), compact, and bus-powered, it is well suited for mobile recording/mixing applications or remote monitoring solutions.

The Digiface USB offers four optical ADAT / S/PDIF I/Os and a high-quality analog line/phone stereo output via a 1/4" TRS jack, for a total of 32 inputs and 34 outputs when using ADAT optical. It also comes with the real-time mixer software TotalMix which allows you to mix and route all inputs and playback channels simultaneously, to any hardware outputs. The software features a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and more.

The included DIGICheck utility software provides a suite of tools to test, measure, and analyze digital audio streams with a high-precision peak/RMS level meter, a spectral analyzer, a vector audio scope, and more.

Features:

Interface: USB 2.0, bus-powered, no external power supply required
Sample rates: 28 kHz to 200 kHz
66 channels: 32 in / 34 out
4 x ADAT / S/PDIF optical input ports
4 x ADAT / S/PDIF optical output ports
Standard speed: 32 channels, 24-bit/up to 48 kHz, record/playback via ADAT optical
Double speed: 16 channels, 24-bit/96 kHz, record/playback via ADAT optical (S/MUX)
Quad speed: 8 channels, 24-bit/192 kHz, record/playback via ADAT optical (S/MUX4)
Each single optical port can use either ADAT (up to 8 channels) or S/PDIF (stereo)
ADAT and S/PDIF I/Os can be used simultaneously
One analog line/headphone stereo output, provides separate output for independent submix
All settings can be changed in real-time
TotalMix allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs, with 46-bit internal resolution
TotalMix for latency-free submixes and ASIO Direct Monitoring
Compact, portable, and lightweight audio interface
Slave and master clock modes – Internal, ADAT input, S/PDIF input
Buffer sizes/latencies 32 to 8192 samples, selectable
Automatic and intelligent master/slave clock control
SteadyClock: Jitter-immune, super-stable digital clock
SyncAlign guarantees sample-aligned and never-swapping channels
SyncCheck tests and reports the synchronization status of input signals
DIGICheck DSP: Level meter in hardware with peak and RMS calculation
High-resolution Bitclock PLL (audio synchronization) in ADAT mode, even in vari-speed operation
Near-zero effective clock jitter influence on A/D and D/A conversion
PLL ensures zero dropout, even at more than 100 ns jitter
Low-Jitter Design:
