Source Audio SA164 Neuro Hub

The Sound lox Hub v1 unites all your Sound lox 2 pedals into a thoroughly integrated multi-pedal system. This breakthrough in effect utility introduces Source Audio’s new scene saving functionality, enabling the creation of up to 128 single or multi-pedal presets (i.e. "scenes"), each recallable via MIDI Program Change messages. Simply dial in your Sound lox effects as you would any fully loaded pedal board, hit SAVE on the Hub and your pedal settings are captured! Enjoy the power of one-step scene recall without the headache of navigating a complicated multi-effects processor.

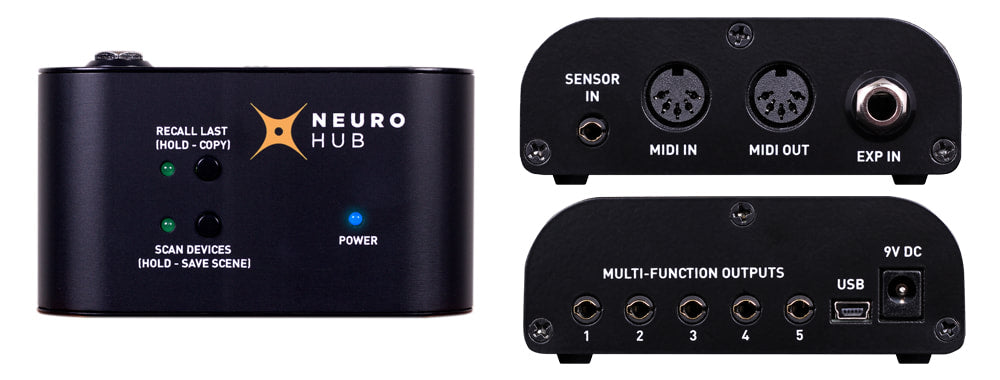

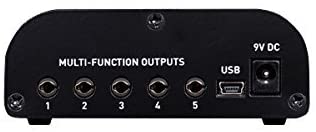

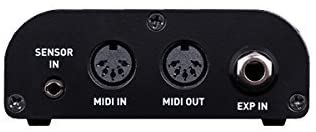

The Hub's connections include standard 5-pin MIDI IN, MIDI OUT/THRU, passive "TRS" expression pedal input, a Hot Hand Sensor Input, mini USB port, and 5 Multi-Function outputs. Connect the Dual Expression Pedal and the Hot Hand Wireless Effect Controller to the Hub and assign external control to any pedal on your board. Each scene can contain any number of external control configurations, including simultaneous Hot Hand and Expression Pedal control of multiple parameters on multiple pedals.

The Hub is also compatible with all Sound lox 1 and Sound lox Pro series pedals. Use the Hub to engage/disengage your Sound lox 1 pedals or engage/disengage any of your Sound lox Pro presets. Connect the Hub to a PC, Mac, or iPad (with a camera kit) via the USB port, for updates, saving and editing presets, and much more. The Hub also includes a 9V DC power adapter and five 1/8" Sensor Cables.

FEATURES:
- Save and Recall up to 128 multi-pedal "Scenes" via MIDI Program Changes.
- Connect up to 5 Sound lox pedals via Multi-Function ports
- Standard 5-pin MIDI IN and OUT/THRU
- Access, Edit, and Save pedal presets and scenes via USB port to Mac or PC.
- Passive Expression Pedal input, and Hot Hand Sensor Input
