M-Audio M-Track Quad | Four-Channel Audio + MIDI USB Interface (24-bit/96 kHz) - Refurb

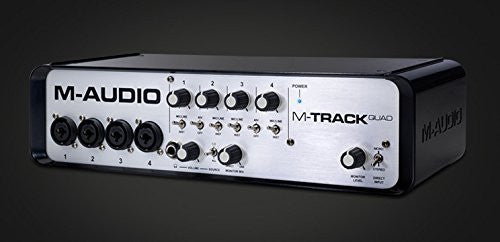

M-Audio M-Track Quad | Four-Channel Audio + MIDI USB Interface (24-bit/96 kHz)

Add a professional edge to your project studio with the M-Track Quad from M-Audio.

Four flexible inputs accommodate any source, from phantom-powered microphones to your favorite guitar. Plus, each input comes equipped with its own insert jack for integrating your favorite effects. M-Track Quad provides zero-latency monitoring of the input signal for carefree recording. Four outputs deliver versatile playback options.

The front panel also offers a headphone output with dedicated level control. In addition to outstanding audio performance, M-Track Quad also features MIDI in and out jacks. M-Track Quad connects to your computer via USB and also acts as a powered hub with three additional USB ports.

Completing this powerful package are two complementary software selections: Avid Pro Tools Express and Ignite by AIR. Together, they deliver a comprehensive path for transforming the ideas in your head into a finished piece of music.

The unit can be used in the following electromagnetic environments: residential, commercial and light industrial, urban outdoors. This apparatus is not intended for rack-mounting.
Technical Specs
USB Audio Interface

Sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Resolution: 24-bit
Interface: USB 2.0, High-Speed

Analog Inputs

Frequency response: 20 Hz to 20 kHz (+0.05dB) Line gain range 51.5 dB
Dynamic range: 103 dB, A-weighted Line impedance 55 kΩ
SNR: -103 dB, A-weighted Guitar gain range 54 dB
THD+N: 0.0024% @ 1 kHz / -0.25 dBFS Guitar impedance 102 kΩ
Crosstalk: 93 dB @ 1 kHz / -0.1 dBFS Insert input sensitivity 0 dBFS @ +6 dBV
Pre-amp EIN:
126 dB analog to digital (max gain,
150 Ω source, unweighted)
129 dB analog to digital (max gain,
150 Ω source, A-weighted)
Insert input impedance 10 kΩ
Pre-amp THD+N: 0.008% @ max gain
Mic gain: 43 dB
Mic impedance: 6.3 kΩ

Analog Outputs

Output level: +6 dBV @ 0 dBFS SNR -101 dB, A-weighted
Frequency response: 20 Hz to 20 kHz (+0.25 dB) THD+N 0.006% @ 1 kHz / 0 dBFS
Dynamic range: 101 dB, A-weighted Crosstalk 97 dB @ 1 kHz / 0 dBFS

Headphones

32-Ω load:

Unclipped output power: 10 mW @ 1 kHz
Frequency response: 20 Hz to 20 kHz (+0.25 dB)
SNR: -100 dB, A-weighted
THD+N: 0.007% @ 1 kHz / 0 dBFS
Crosstalk: 95 dB @ 1 kHz / 0 dBFS

600-Ω load:

Unclipped output power: 3.4 mW @ 1 kHz
Frequency response: 20 Hz to 20 kHz (+0.25 dB)
SNR: -100 dB, A-weighted
THD+N: 0.003% @ 1 kHz / 0 dBFS
Crosstalk: 95 dB @ 1 kHz / 0 dBFS
